Circlips

External? Internal? How do I measure a Circlip?

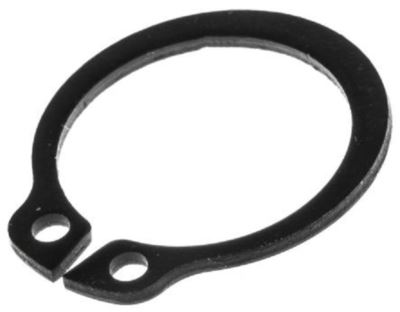

What does an External Circlip look like?

As you can see from the image to the right the Lugs on an External Circlip face outwards.

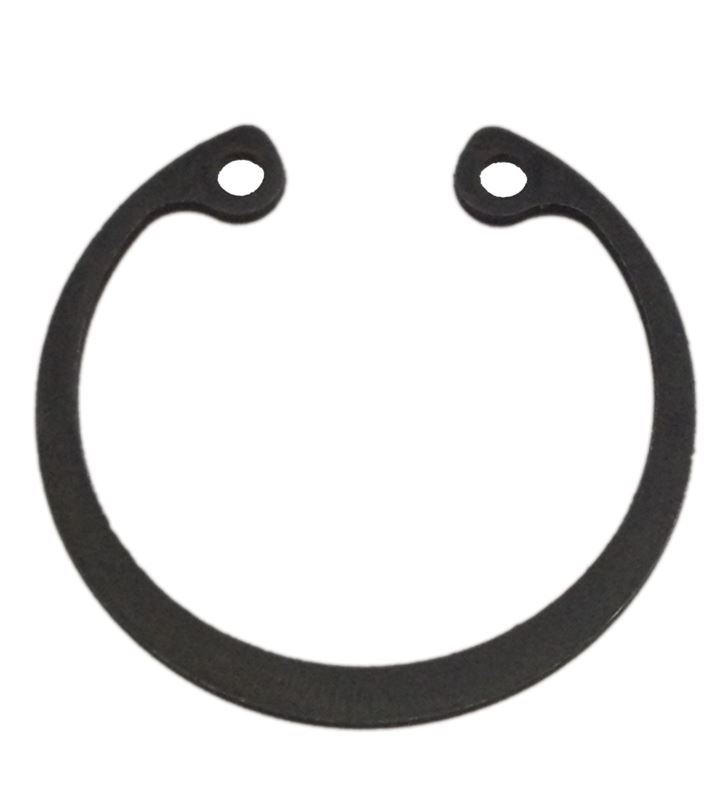

What does an Internal Circlip look like?

As you can see from the image to the right the Lugs on an Internal Circlip face Inwards.



How do I measure a Circlip?

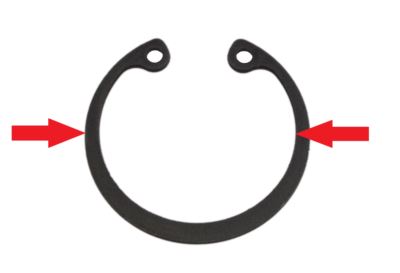

To get the correct size Circlip you measure from the Outside on one Side to the Inside on the Other at the widest point.  As per the image.
